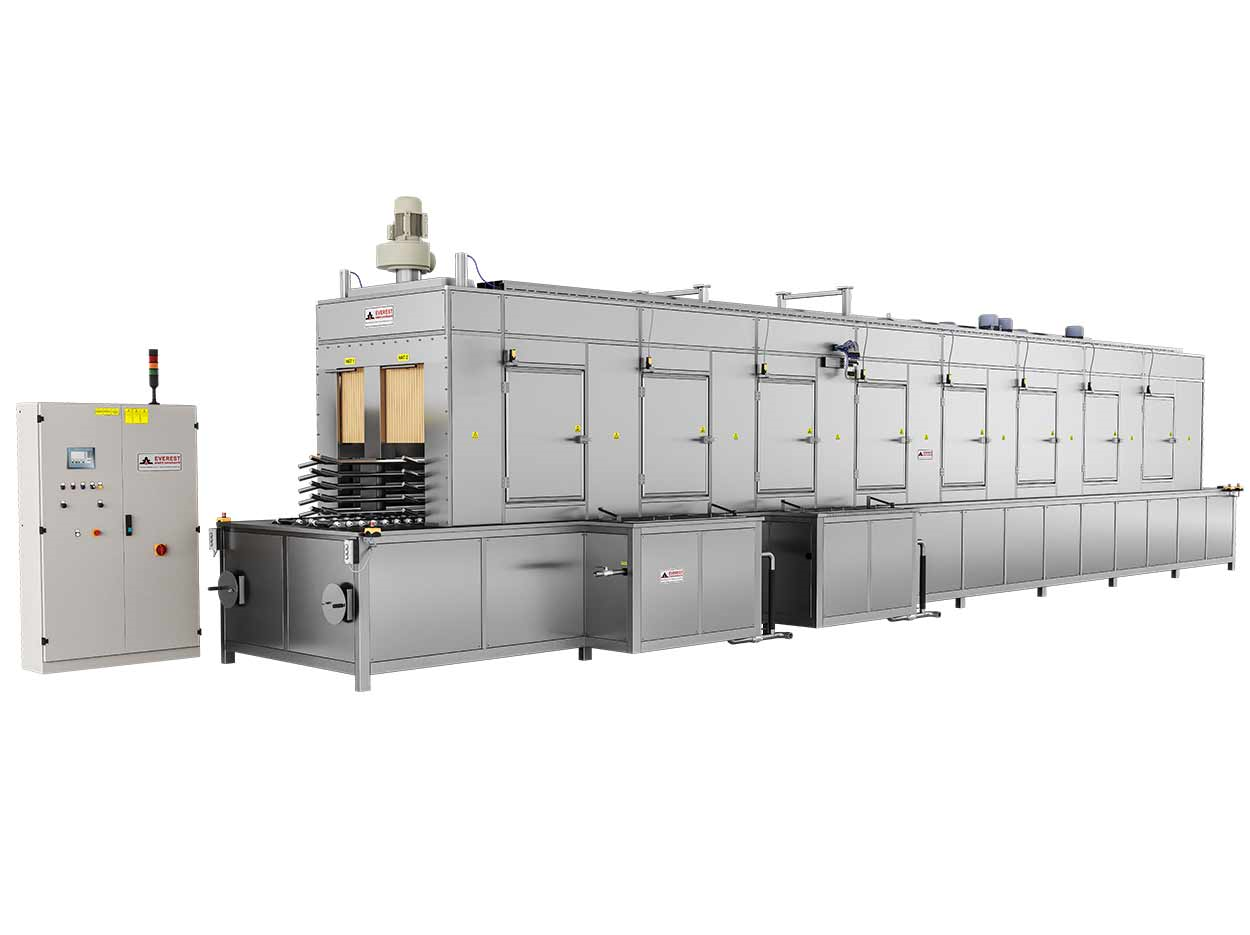

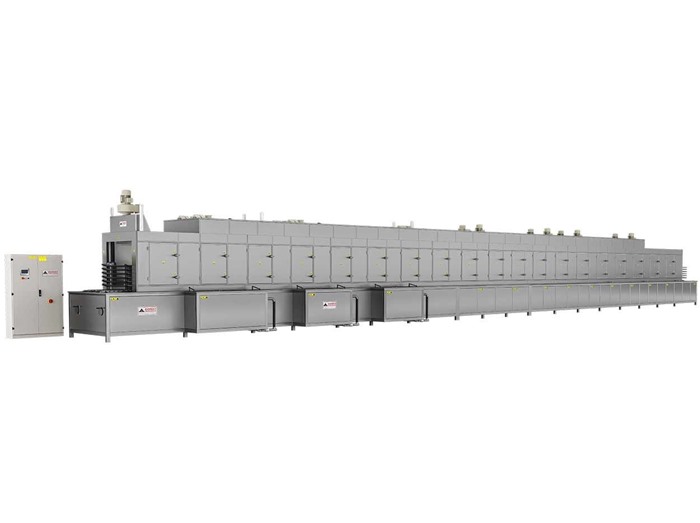

TunClean-KLT

Cost effective labour savings, environmentally friendly, energy efficient, automatic loading and unloading system can be integrated with indexing conveyor (optional), can be integrated into the serial production line (optional), suitable for medium weight items.

General Features:

TunClean-KLT conveyor line pressure washing systems have been specially developed for sequential cleaning of KLT boxes/crates, KLT covers, pallets known collectively as dunnage in one single machine. In TunClean-KLT washing systems with conveyor lines all processes are carried out sequentially in a single tunnel canopy where machine guides can be adjusted according to the KLT being processed as standard.

Washing system: conveyor line spray cleaning system
Working principle: serial cleaning on the conveyor belt for different sized dunnage
Boiler system: Single or multiple tanks with separate heating
Feeding: Manual or automatic loading
Reconstruction: Entirely from 304 stainless steel
Control panel: Siemens touch panel as standard

Technicial Specifications

Advantages

Product Details

Photo Gallery

ModelLoading Width
mm		Loading Height
mm		External dimensions
(L - W - H) mm
KLT 632/300 WD60020-3208800*2050*2450
KLT 632/600 WD6002x20-3208800*2700*2450
KLT-632/1000 WD6002x20-32012750*2700*2450
KLT-632/1500 WD6002x20-32017300*2700*2450
KLT-1450/300 WD100020-45010600*2200*3000
KLT-1450/600 WD10002x20-45010600*3000*3000
KLT-1450/1000 WD10002x20-45014700*3000*3000
KLT-1450/1500 WD10002x20-45019600*3000*3000

KLT 632/300 WRD60020-32011000*2050*2450
KLT 632/600 WRD6002x20-32011000*2700*2450
KLT-632/1000 WRD6002x20-32015300*2700*2450
KLT-632/1500 WRD6002x20-32020200*2700*2450
KLT-1450/300 WRD100020-45013200*2200*3000
KLT-1450/600 WRD10002x20-45013200*3000*3000
KLT-1450/1000 WRD10002x20-45017750*3000*3000
KLT-1450/1500 WRD10002x20-45023000*3000*3000

KLT 632/300 WRRD60020-32013200*2050*2450
KLT 632/600 WRRD6002x20-32013200*2700*2450
KLT-632/1000 WRRD6002x20-32017850*2700*2450
KLT-632/1500 WRRD6002x20-32023100*2700*2450
KLT-1450/300 WRRD100020-45015800*2200*3000
KLT-1450/600 WRRD10002x20-45015800*2200*3000
KLT-1450/1000 WRRD10002x20-45020800*3000*3000
KLT-1450/1500 WRRD10002x20-45026400*3000*3000

***Contact us for more technical information.
» Labour cost savings
» Environmentally friendly
» Energy efficient
» Automatic loading and unloading system can be integrated with indexing conveyor (optional)
» Can be integrated into the serial production line (optional)
» Suitable for medium weight items.


Washing steps:
» wash -rinse, wash-rinse-dry, -wash-rinse-rinse-dry
» All process recipes can be programmed separately.


Addable Features
» Water stripping air knives
» Pump filtration
» Drip pan
» Heavy material adjustment
» Oil separation
» Automatic loading and unloading system
» Different conveyor belt options
» Robotic system integration
» Additional prewash
» Additional rinse
» Extended drying stage
» Other system features

***All our TunClean-KLT Washing Systems can be custom designed in line with the needs of our customers. Contact us for your special needs...
